Disk spaces

For each project to which a user is attached, four distinct disk spaces are accessible (read/write) to the user: HOME, WORK, SCRATCH/JOBSCRATCH, and STORE.

An additional space, DSDIR, is read-accessible to all users and contains a set of databases and models for the Artificial Intelligence community.

Each space has specific characteristics adapted to its use, which are described on this page. The access paths to these spaces are stored in corresponding shell environment variables: $HOME, $WORK, $SCRATCH, $JOBSCRATCH, $STORE and $DSDIR.

You can find out the occupation of the different disk spaces with the IDRIS commands idr_quota_user and idr_quota_projet or the Unix command du (disk usage).

Notes

• The return of the commands idr_quota_user and idr_quota_project is immediate but is not real-time information: the data is only updated once a day during the night.
• The command du returns real-time information but its execution can take a long time depending on the size of the directory concerned.
• The management of databases / datasets on Jean Zay requires following a specific procedure.

Jean Zay disk spaces

The table below summarises the main characteristics of the disk spaces. It is followed by detailed descriptions of each of them and a series of additional important remarks and characteristics.

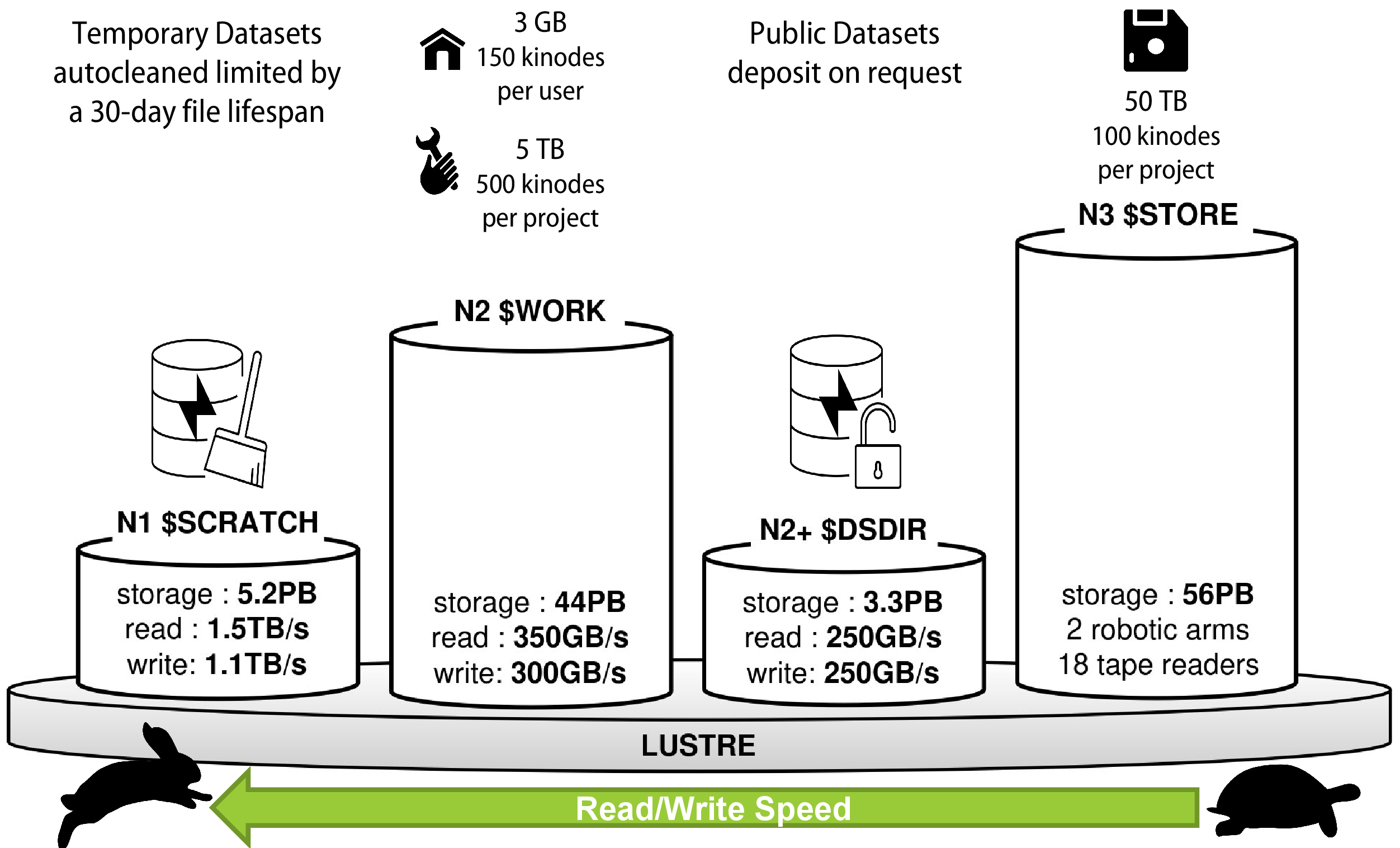

Summary table of disk spaces

Space	Default capacity	Specificities	Uses
HOME	3 GB and 150 kinodes per user	Backed up space Home directory on login	Storage of configuration files and small files
WORK	5 TB (*) and 500 kinodes per project	Non-backed up space Storage on rotating disks (350 GB/s read and 300 GB/s write)	Storage of sources and input/output data Batch or interactive execution
SCRATCH	Very large security quotas; 4.6 PB shared by all users	Non-backed up space Lifetime of unused files (= not read, not modified) of 30 days SSD storage (1.5 TB/s read and 1.1 TB/s write)	Storage of large input/output data Batch or interactive execution Optimal performance for read/write operations
JOBSCRATCH	Identical to SCRATCH	Space created at the start of a job and deleted at the end of it Storage identical to SCRATCH	Identical to SCRATCH
STORE	50 TB (*) and 100 kinodes (*) per project	Non-backed up space Disk cache and magnetic tapes Long access times if file is only on tape	Long-term archive storage (project lifetime) Not accessible from compute nodes
DSDIR	3.3 PB in total for all users	Read-only access for users Additional downloadable databases by IDRIS on request	Storage of public databases read-accessible to all users

(*) project quotas can be increased on request from the project leader or their deputy via the Extranet interface or on request to User Support.

Detailed description of disk spaces

HOME

This is the home directory when logging in interactively. This space, specific to each user, is unique even in the case of a multi-project login and is regularly backed up. It is intended for small files that are very frequently used, such as shell environment files, utilities, possibly sources and libraries when their size is reasonable.

This space is deliberately limited by quotas per user, both in terms of volume (GB) and total number of files (inodes). It is accessible interactively or in a batch job via the variable $HOME:

cd $HOME# or simply:cd

WORK

This is a workspace and storage space, usable interactively and in batch, and not backed up. It is generally used to store large files that are used during batch executions: large source files and libraries, data files, executables, result files, submission scripts, etc.

The WORK is a disk space limited by quotas per project, both in terms of volume (GB) and total number of files (inodes). It offers a bandwidth of about 300 GB/s for writing and reading. This can be temporarily saturated in case of exceptionally intensive use. It can be accessed by the command:

cd $WORK

Usage recommendations

• Batch jobs can run in the WORK; however, several of your jobs may run at the same time, so you need to manage the uniqueness of your execution directories and/or your file names.
• In addition, it is subject to quotas (per project) which can abruptly stop your execution if they are reached. Therefore, in the WORK, you must take into account not only your own activity, but also that of your project colleagues. For these reasons, you may prefer to use SCRATCH or JOBSCRATCH (see below) for running your batch jobs.

SCRATCH

This is a workspace and storage space usable interactively and in batch. It is not backed up, and the lifetime of unused files (not read and not modified) is limited to 30 days. It is generally used to store large files that are used during batch executions: data files, result files or calculation restart files (restarts).

It is limited by very large security quotas of about 1/10^th of the total disk space and project inode quotas of about 150 million files and directories. The SCRATCH is a disk space with a bandwidth of over 1 TB/s for writing and reading. It is accessible via:

cd $SCRATCH

Usage recommendations

• Once post-processing has been carried out to reduce the volume of data, it is advisable to make a copy of the significant files in the WORK space (or STORE for long-term archiving) so as not to lose them after 30 days of inactivity. It is also recommended to keep an archive of the input data sets.
• The SCRATCH can be seen as a semi-temporary WORK, but with the maximum input/output performance offered at IDRIS, at the cost of a file lifetime of 30 days.
• The semi-temporary characteristics of the SCRATCH allow large volumes of data to be stored there, which can be shared when chaining two or more jobs over a period limited to a few weeks: this space is not "purged" after each job (unlike JOBSCRATCH below).

JOBSCRATCH

This directory has the same characteristics as the SCRATCH, but with a lifetime of files limited to that of a single batch job: it is created automatically at the beginning of the job and is automatically destroyed at the end of its execution. Within the batch job in question, the directory is accessible via the environment variable $JOBSCRATCH. The same directory is also accessible from the Jean Zay front-end during the entire duration of the batch job in question, as a subfolder of the /lustre/fsn1/jobscratch directory. The name of the subfolder is the concatenation of your login (environment variable $LOGNAME) and the number JOBID associated with the job in question (see the output of the command squeue) :

MYJOBID=insert_your_jobid_herecd /lustre/fsn1/jobscratch/${LOGNAME}_${MYJOBID}

Usage recommendations

JOBSCRATCH can be seen as the old TMPDIR. Note that if the variable $TMPDIR is involved in the codes used, it is possible to simply define export TMPDIR=$JOBSCRATCH before execution, to avoid having to intervene in the codes concerned.

STORE

This is the IDRIS archiving space, intended for long-term data storage. It is generally used to store very large files, the result of the tar of a directory tree of result files from calculations, after post-processing.

warning

The maximum size is 10 TiB per file and the recommended minimum size is 250 MiB (ratio disk size / number of inodes).

This is a space that is not intended to be accessed or modified daily, but allows very large volumes of data to be preserved over time with episodic consultation. It is subject to quotas per project with a low number of inodes, but a very large space. It can be accessed by the command:

cd $STORE

Important change

Since 22 July 2024, the STORE is only accessible from the front-ends and the partitions prepost, archive, compil and visu. Jobs running on the compute nodes will no longer have direct access to this space but you can use chained jobs to automate data management from/to the STORE (see our examples of chained jobs using the STORE).

Usage recommendations

• The files do not have a limited lifetime.
• Storage of very large files (such as .tar archives) but in limited numbers.
• As this is an archive space, it is not designed for frequent access. Files migrated to magnetic tape will have increased access times.

DSDIR

This disk space contains large public databases (in size or number of files) and collections of widely used models, necessary for the use of Artificial Intelligence tools.

note

These databases are visible to all users of Jean Zay.

The databases currently available on Jean Zay are listed on a dedicated page. If you wish to use databases that are not already there, IDRIS will download and install them in this disk space at your request if their licences allow us to do so.

If your database is personal or under too restrictive a licence, you will have to manage it yourself on the disk spaces of your project, as described on the "Database Management" page.

Additional remarks and characteristics

Backups

Attention

Following the migration to the new Lustre storage spaces, the WORK disk space is no longer backed up. We recommend that you keep a copy of your important data in the form of archives stored on your STORE.

Quotas

The HOME, WORK, SCRATCH and STORE disk spaces are subject to disk space and file number (inodes) quotas. The quotas are detailed on the Quota Management page.

Disk spaces and projects

In the case of a multi-project login, a disk space of each type (WORK, SCRATCH, STORE) exists for each project. Thus, a user belonging to several projects will have a WORK, SCRATCH and STORE space per project.

note

A multi-project user can access all the spaces of all their projects via various environment variables listed by the IDRIS idrenv command.

The WORK, SCRATCH and STORE variables only reference the disk spaces linked to your active project which was selected by default when logging in or manually via the dedicated commands.

In addition, each WORK, SCRATCH and STORE disk space is divided into two parts:

• a part specific to each user, accessible via the environment variables $WORK, $SCRATCH and $STORE;
• a part common to the project allowing data sharing, accessible via the environment variables $ALL_CCFRWORK, $ALL_CCFRSCRATCH and $ALL_CCFRSTORE.

Environment variable nomenclature

IDRIS endeavours to respect the nomenclature common to that of the other national computing centres (CINES, TGCC). Thus, for each disk space presented above, an alternative environment variable is available, by adding the prefix CCFR to the original variable: $CCFRHOME, $CCFRWORK, $CCFRSCRATCH and $CCFRSTORE (see the output of the IDRIS idrenv command.
